Low Pressure Permanent Mold Castings
Low pressure permanent mold castings provide a controlled aluminum casting process designed to deliver exceptional structural integrity, reduced porosity, and highly consistent mechanical properties. At Alcast Company, low pressure permanent mold casting is used for performance-critical aluminum components where internal soundness, dimensional accuracy, and repeatability are essential.
By filling molds from the bottom under carefully regulated pressure, Alcast produces aluminum castings with smooth metal flow and minimal turbulence. This method supports demanding applications across industries such as powertrain, heavy equipment, defense, and power generation.
What Is Low Pressure Permanent Mold Casting
Low pressure permanent mold casting is a variation of permanent mold casting in which molten aluminum is introduced into the mold cavity using controlled air pressure rather than gravity alone. The aluminum is pushed upward from a sealed furnace into the mold, allowing for smooth, uniform filling.
This controlled filling process significantly reduces air entrapment and turbulence, resulting in aluminum castings with improved density, internal integrity, and mechanical performance compared to traditional gravity casting methods.
Advantages of Low Pressure Permanent Mold Castings
Low pressure permanent mold casting offers several advantages for aluminum components that require consistent quality and high performance.
Key benefits include:
- Reduced porosity and improved internal soundness
- Enhanced mechanical properties and structural integrity
- Uniform mold filling and controlled solidification
- Improved dimensional consistency and repeatability
- Excellent surface finishes with minimal secondary processing
These advantages make low pressure permanent mold castings ideal for pressure-containing and load-bearing applications.
Low Pressure Casting Process at Alcast
Alcast’s low pressure permanent mold casting process is tightly controlled to ensure consistent results from melt preparation through final inspection. Each step is monitored to maintain material integrity and dimensional accuracy.
The process typically includes:
- Alloy selection and controlled melt preparation
- Sealed furnace connection to the permanent mold
- Low pressure metal transfer into the mold cavity
- Controlled solidification and cooling
- Casting removal, trimming, and inspection
By maintaining precise control over pressure and temperature, Alcast minimizes defects and ensures repeatable casting quality.

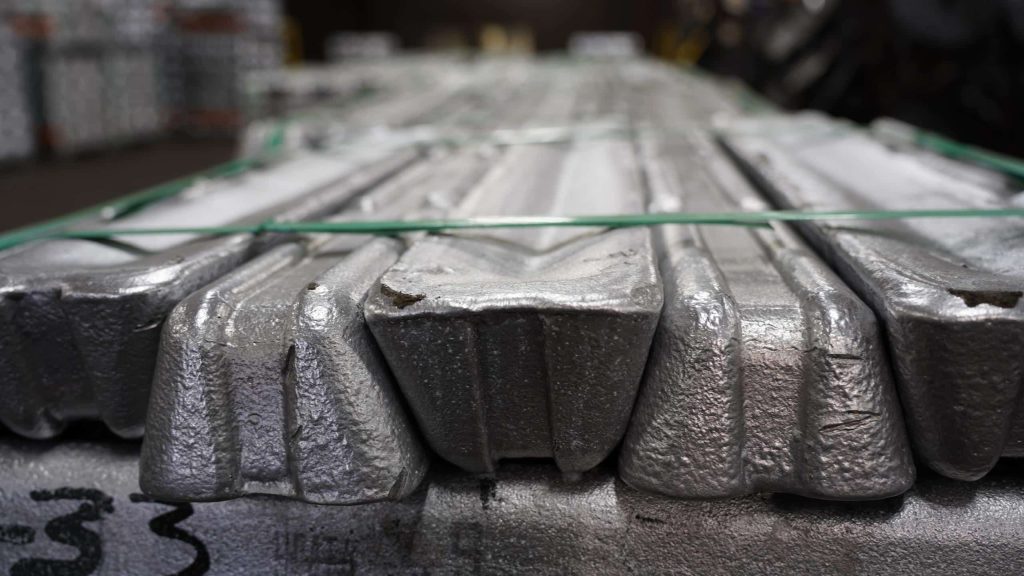

Aluminum Alloys Used in Low Pressure Casting
Low pressure permanent mold casting supports a variety of aluminum alloys selected for strength, corrosion resistance, and thermal performance. Alcast commonly works with alloys such as A356 and other engineered aluminum formulations optimized for permanent mold processes.
Each alloy is verified using in-house spectrometer analysis to confirm metallurgical composition and ensure compliance with customer specifications. Proper alloy selection enhances casting performance and long-term durability.
In-House Machining and Secondary Operations
Low pressure permanent mold castings produced at Alcast can be delivered as fully finished components. Our in-house CNC machining capabilities ensure tight tolerances and consistent quality throughout the manufacturing process.
Machining and finishing services include:
- CNC milling and drilling
- Tapping and threading
- Dimensional inspection and verification
- Secondary finishing and preparation
This integrated approach allows customers to receive production-ready aluminum components without the need for external processing.

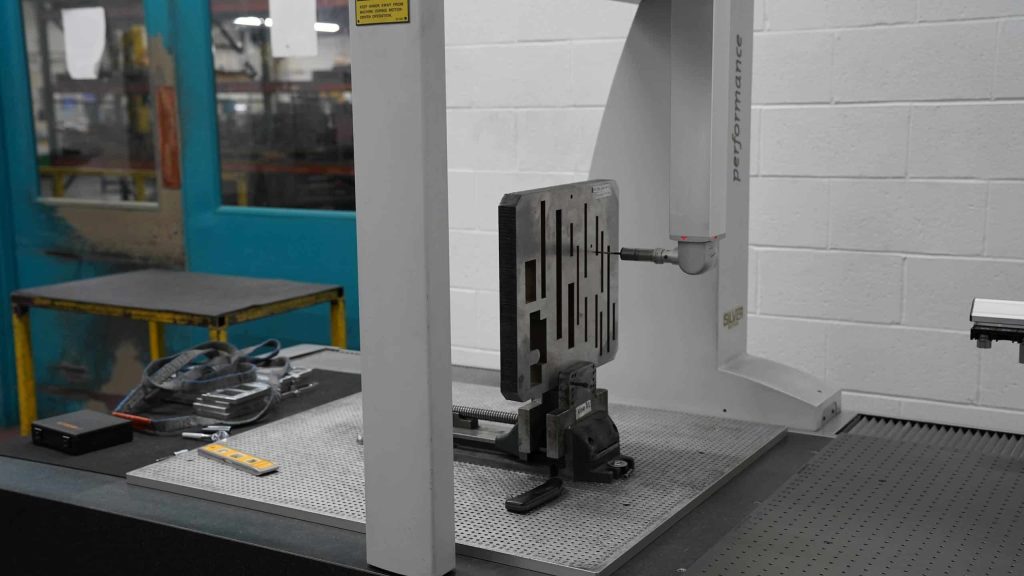

Quality Control and Testing
Quality assurance is essential for low pressure permanent mold castings. Alcast maintains comprehensive in-house testing and inspection capabilities to verify casting integrity and material consistency.
Testing capabilities include:
- Helium Pressure Decay and Air Under Water leak testing
- Tensile, Yield, and Elongation testing
- Spectrometer analysis for metallurgical composition
- Real-time Bosello X-ray inspection
These advanced testing methods ensure every low pressure permanent mold casting meets performance and reliability requirements.
Applications for Low Pressure Permanent Mold Castings
Low pressure permanent mold castings are widely used in industries that demand high-integrity aluminum components. Typical applications include powertrain housings, hydraulic components, structural assemblies, and pressure-containing parts used in heavy equipment, power generation, and defense systems.
The process’s ability to produce dense, consistent aluminum components makes it ideal for applications where failure is not an option.
Why Choose Alcast for Low Pressure Permanent Mold Castings
Manufacturers choose Alcast Company for low pressure permanent mold castings because of our technical expertise and commitment to quality. Alcast offers:
- Deep specialization in permanent mold and low pressure casting
- Advanced process control and metallurgical expertise
- Complete in-house machining and testing
- Consistent quality with full traceability
- Engineering collaboration and responsive support
These strengths make Alcast a trusted partner for high-performance aluminum casting solutions.
Partner with Alcast for Low Pressure Permanent Mold Aluminum Castings
When your application requires superior internal integrity and repeatable performance, Alcast Company delivers. Our low pressure permanent mold castings provide engineered aluminum solutions backed by advanced testing and decades of foundry experience.
Contact Alcast Company today to discuss your low pressure permanent mold casting requirements or request a quote for your next aluminum casting project.
